Chicago Pneumatic

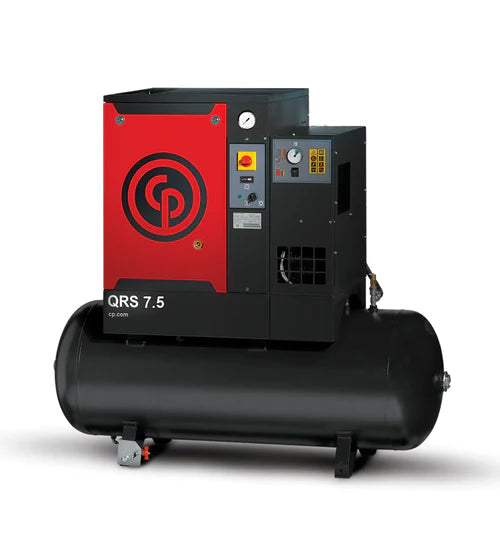

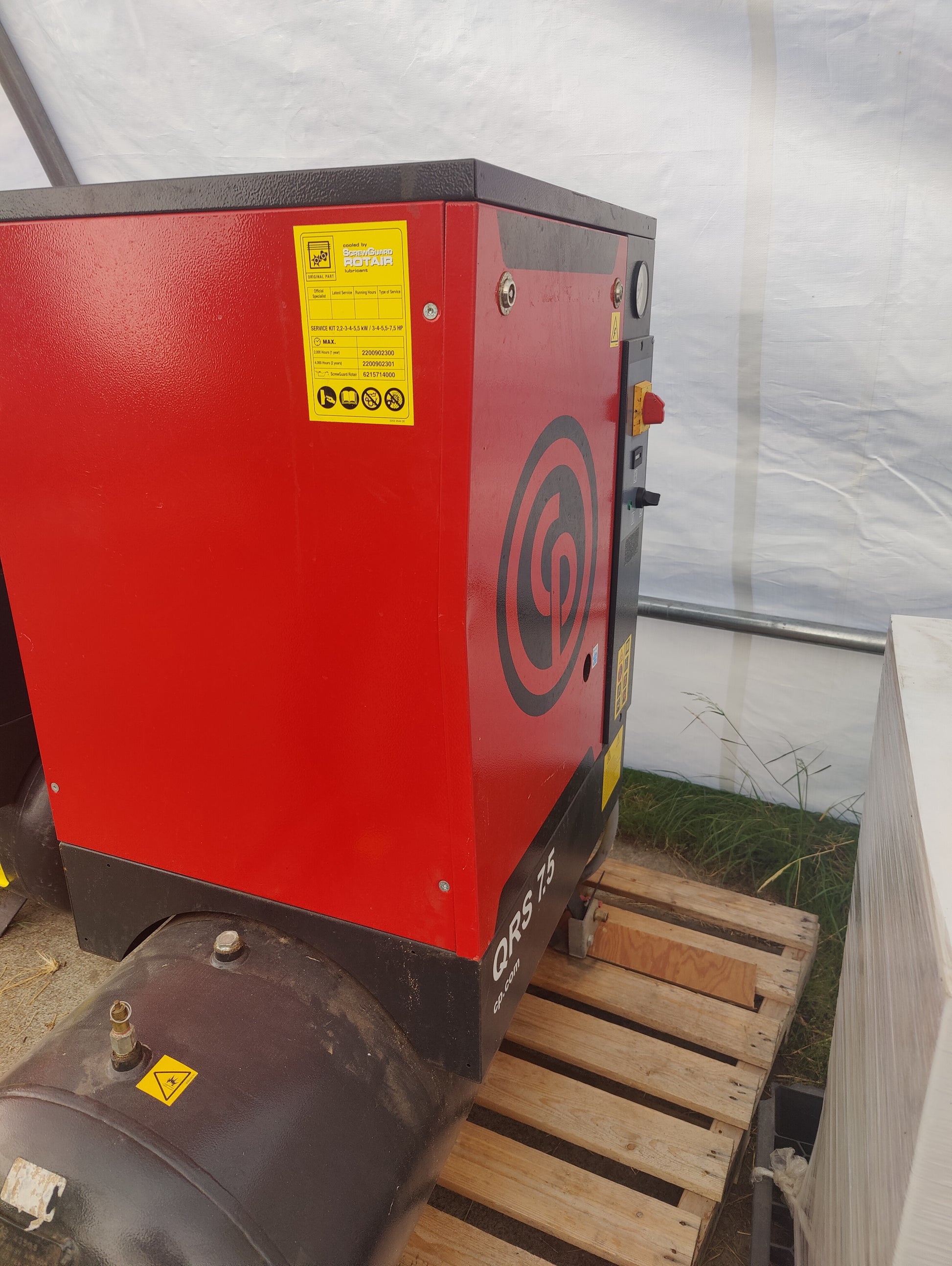

Chicago Pneumatic QRS 7.5 HP 1 Phase Rotary Screw Compressor

Chicago Pneumatic QRS 7.5 HP 1 Phase Rotary Screw Compressor

Regular price $6,495.00 USD
Regular price $11,846.00 USD Sale price $6,495.00 USD
Sale Sold out
Shipping calculated at checkout.

Chicago Pneumatic QRS 7.5 HP 1 Phase Rotary Screw Compressor

Product Description

Quiet Rotary Screw QRS compressors are designed with the automotive aftermarket in mind, making them ideal for paint and body shops, tire shops, dealer service shops and general maintenance and repair shops. This compressor requires less maintenance than air-cooled reciprocating compressors, is easy to install, quiet less than 65dB, fully packaged and wired. Can be installed anywhere by a qualified electrician - no separate room is needed. Equipped with sound-attenuating enclosures and 60-gallon ASME horizontal tank. Includes a TEFC motor, adjustable V-belt drive, full voltage motor starter, auto start/stop, moisture drain, safety shutdown, air shutoff valve and safety relief valves. This unit features a refrigerated dryer that removes all of the moisture from the air during use. U.S.A. Portable or Stationary Stationary, Air Outlet Size in. 1/2, HP 5, Max. PSI 150, Tank Description Horizontal, Volts 23, Amps 26.7, Pump Rotary screw, oil injected, air cooled, belt-driven, Dimensions L x W x H in. 56 x 23 x 50, Air Tank Size gal. 60, CFM at 90 PSI 17.26. Rated the QUIETEST in the Industry No valve rework, replacing valve strips or replacing bearings or rods 100 continuous duty even when fully loaded Dryer included with this unit Model Number: QRS5.0HPD-1
