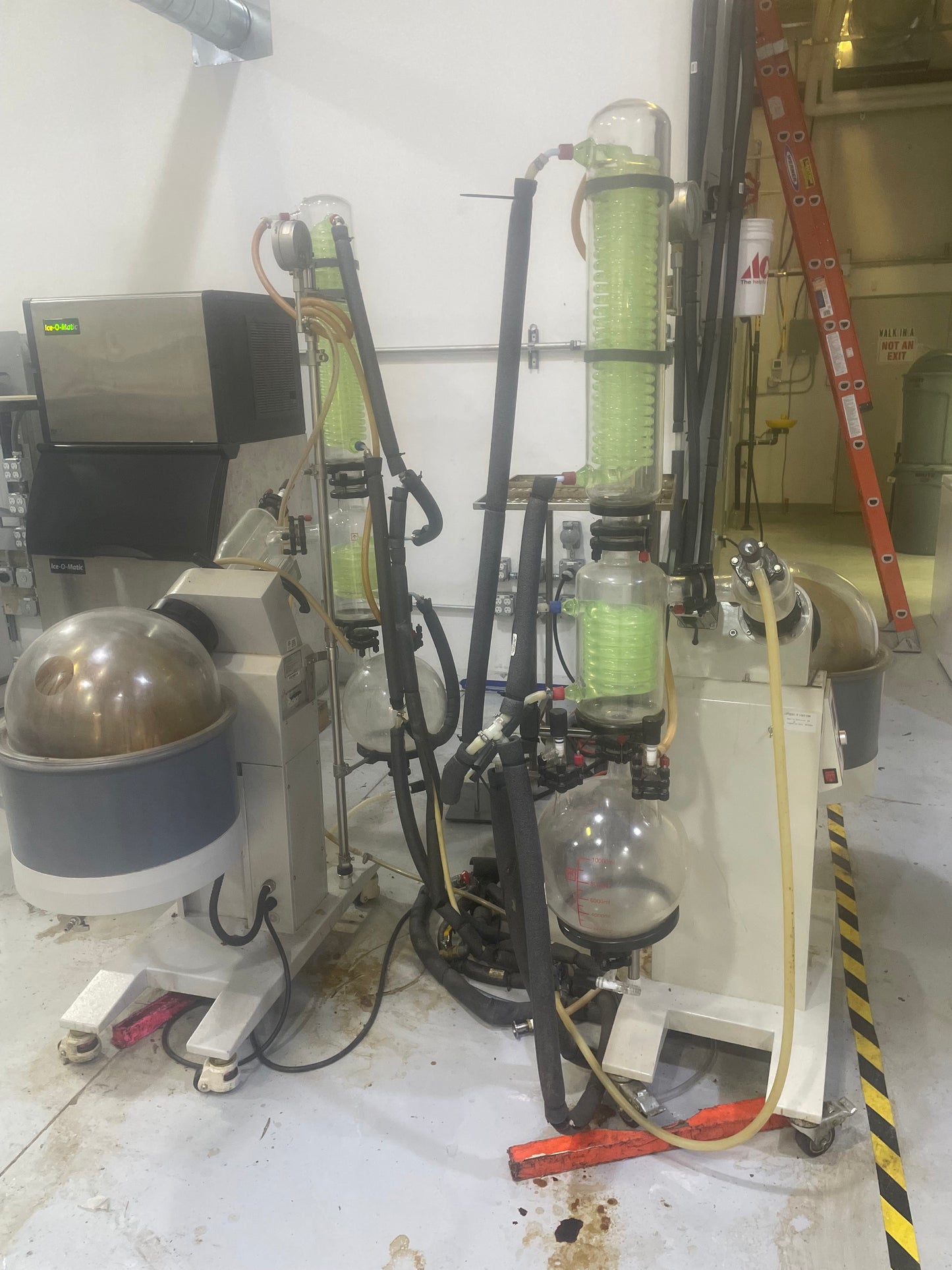

AI Rotoary Evaporator *Glassware and ancillaries sold separately

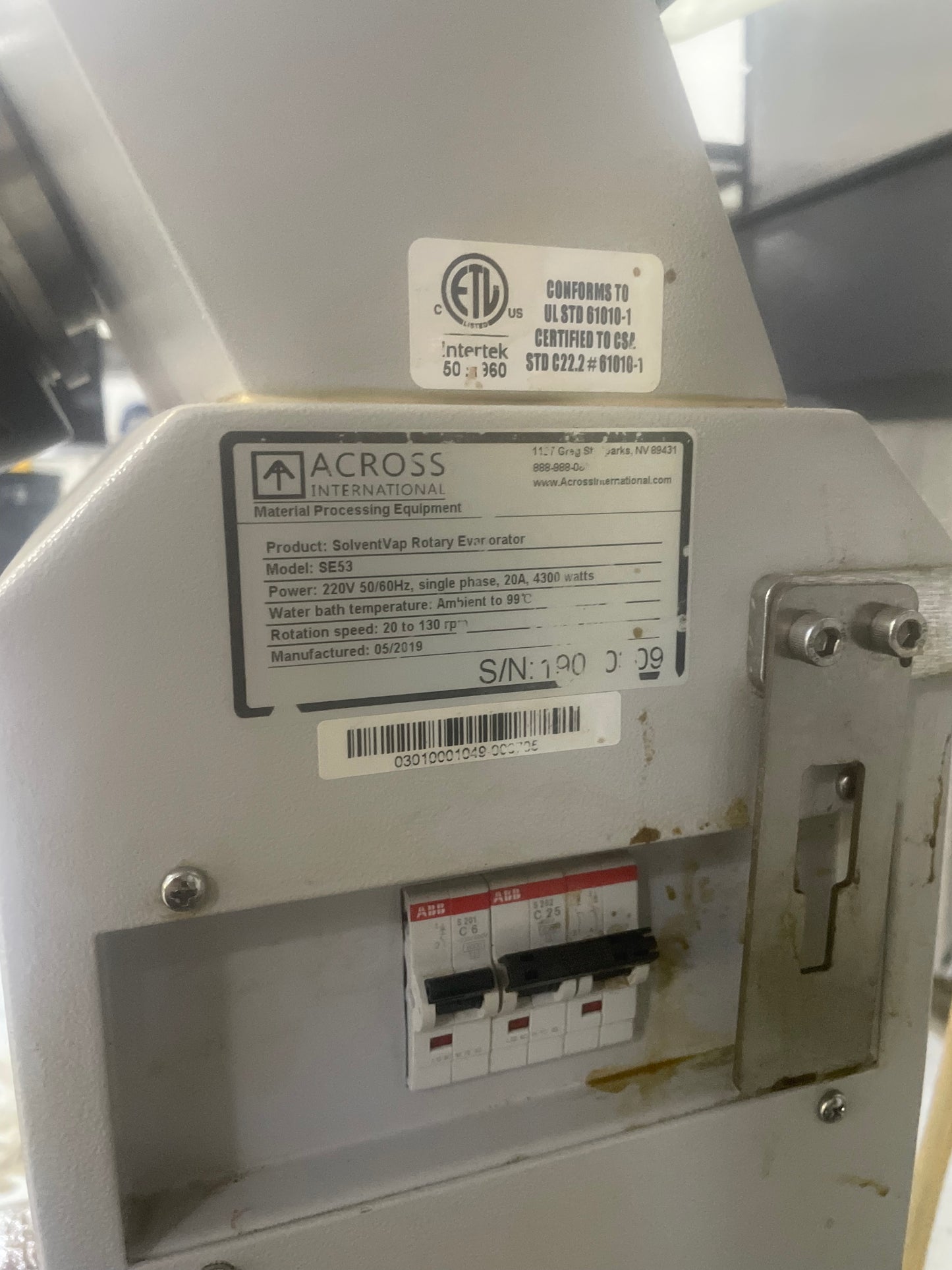

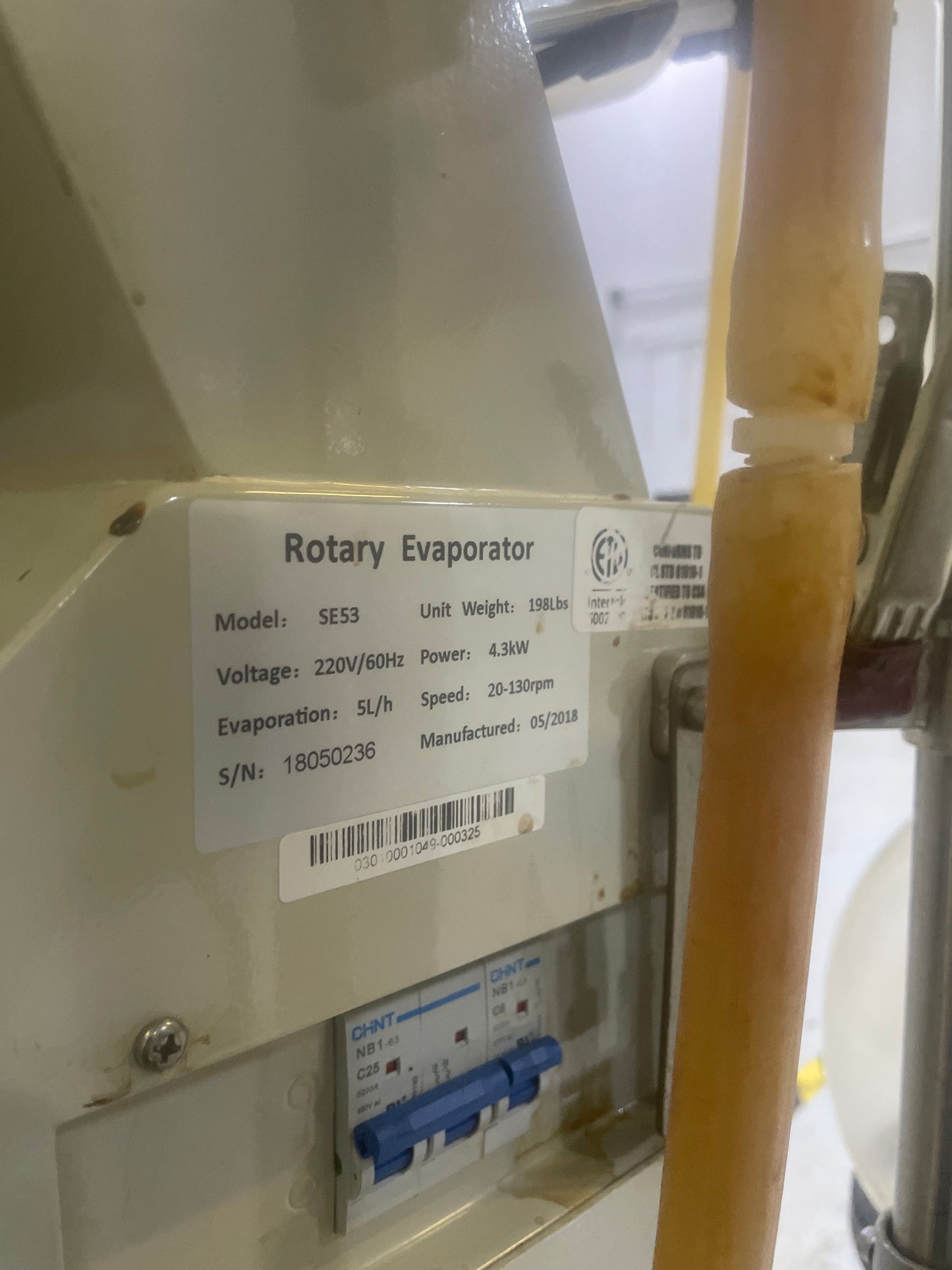

Electrical requirements

220V 50/60Hz single phase, 20A, 4300 watt (rotation motor: 300 watts)

Glass material

High borosilicate glass 3.3

Evaporating flask

Capacity: 5.28 gallon (20 liters or 0.7 cu ft)

 Maximum load: Not to exceed 60% of the flasks capacity

 Sealing flange: 4.9" diameter

 Rotation speed: 10 to 130 rpm

 Evaporating speed: 1 gallon/hour (water), 2 gallon/hour (alcohol)

Receiving flask

2.64 gallon (10 liters or 0.35 cu ft)

Condenser

Glassware: Main + auxiliary triple-circulating cold traps, vertical

 Chilling fluid conneciton: 3/8" hose barb x 4 (2 on main + 2 on auxiliary)

 Condensing surface

   Main condenser: 9,480 cm2 or 10.2 sq ft

   Auxiliary condenser: 3,580 cm2 or 3.9 sq ft

Working environment

5 to 95°F

Water bath

Temperature range: ambient to 99°C (210°F)

 Temperature controller: digital

 Dimensions: 17.5" diameter x 9.8" depth x 12" height

 Material: stainless steel

 Media: distilled water only

 Max. water level: not to exceed 1" from the top rim of the bath

 Number of heaters: two

 Drain port: one

 Exterior liner: rubber

 Lifting: motorized

 Maximum lifting distance: 7.5 inches

Vacuum

Vacuum level: < 3 torrs

 Vacuum sealing: PTFE + Viton gaskets

 Vacuum connection: 3/8" hose barb x 1

Swivel casters

Four, built-in with locks

Safety

Dry-run, over-temp shut-off, built-in circuit breakers

Weight and dimensions

Shipping: 238 Lb (evaporator)

 Unit: 49 x 23.5 x 82.5" (WxDxH)

 Shipping: 41 x 24 x 48" (evaporator)(WxDxH)

Compliance

UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016

 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)

 CE
