MaxPro Technologies

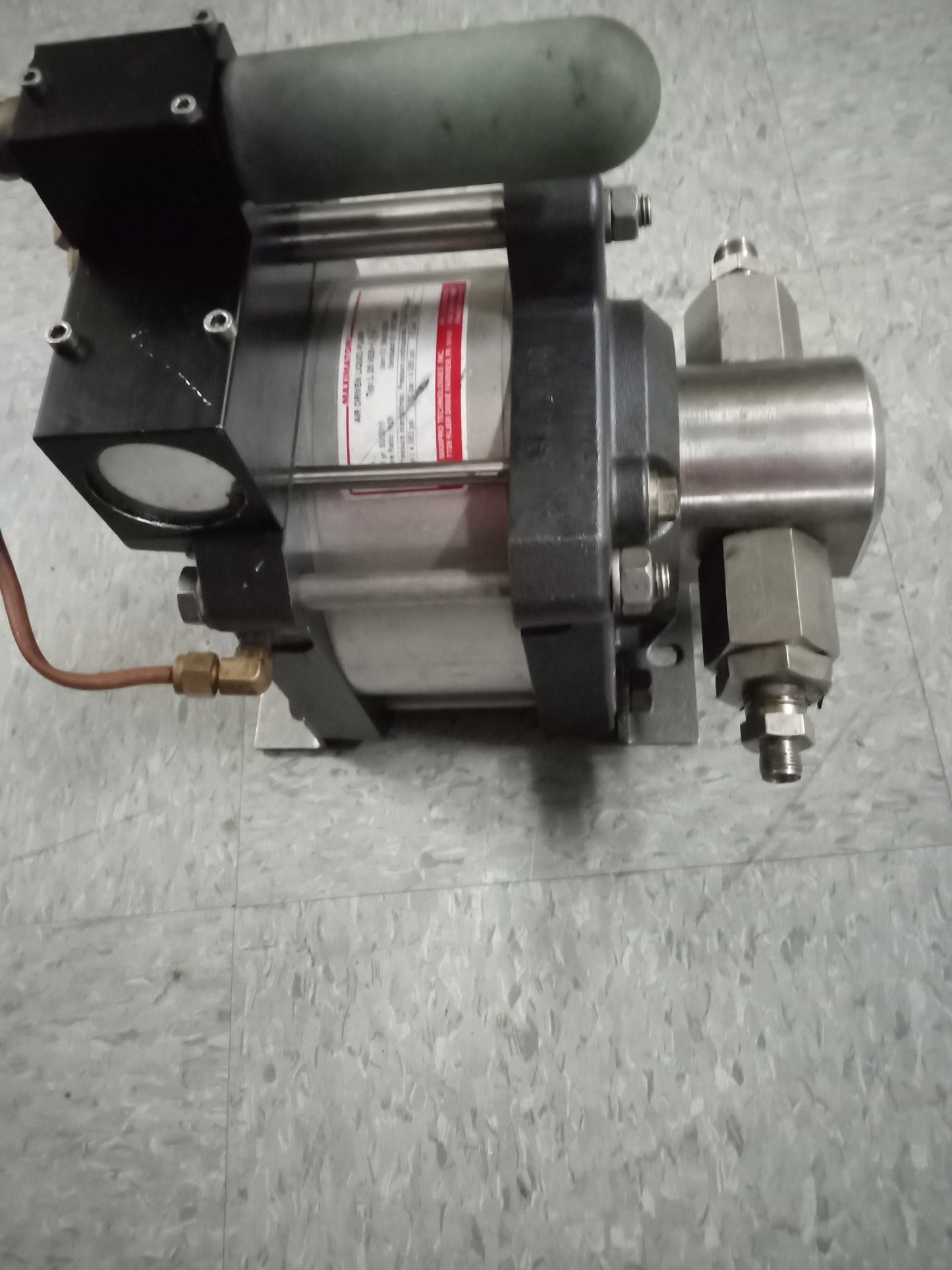

MaxPro L 25 VES Pump

MaxPro L 25 VES Pump

$2,500.00 USD
$4,500.00 USD $2,500.00 USD
Sale Sold out
Shipping calculated at checkout.

Pump Type

 Single Air Drive Head

Pressure Ratio

 1:28

Maximum Outlet Pressure

 4,060 psi

Displacement Per Cycle

 2.15 in³

Inlet Connection

 1/2 in

Outlet Connection

 1/2 in

Weight

 32 lb

Dimension A

 11.62 in

Dimension AS

 9.75 in

Dimension B

 8.25 in

Dimension C

 3.63 in

Dimension D

 6.88 in

Dimension E

 7.81 in

Dimension F

 3.19 in

Air Drive Pressure

 15 to 145 psi

Body Material

 Stainless Steel

Inlet Liquid Connection


 1/2 in

Outlet Liquid Connection


 1/2 in

Air Drive Pressure

 15 to 145 psi

Air Inlet

 1/2 in. Female National Pipe Thread (FNPT)

Features
  • Easy to install and operate
  • Pressure maintained without energy consumption
  • Explosion proof, no electrical power required
  • Pilot air control for remote operation standard on many models
  • External spool valve for quick maintenance on most models
  • Dry air spool valve option available for severe service applications
  • Chemical service pumps are standard with separation fitting
  • Optional seal materials, port connections, double acting, multiple air heads, single stroke, adjustable stroke, special pumps, just ask

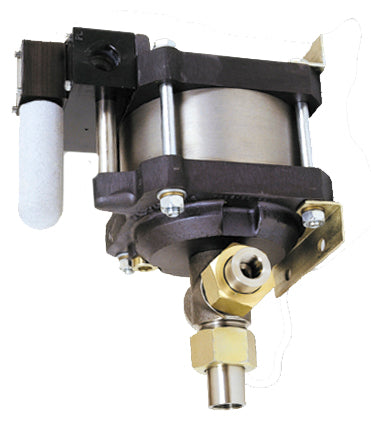

  • L series pumps have stainless steel bodies and 17-4 plungers.
  • All L pumps have UHMWPE (Ultra-High Molecular Weight Polyethylene) seals and Fluorocarbon (FKM)2 O-rings (-VE), except as noted.
  • L series pumps come standard with a bottom or side inlet. For side inlet, add - S to catalog number.
  • Air drive pressure range is 15 -145 psi unless limited by outlet pressure.
  • Air drive inlet is 1/2" FNPT.
  • For air control option, add-ACP to catalog number.
  • All L pumps come with an unregulated pilot port, 1/8" FNPT, in the top cap. This feature provides more accurate pressure control and is an ideal location for control instrumentation.
  • All L pumps are available with a double air drive head. This doubles the pressure ratio of the pump, allowing the use of a lower ratio base pump, to provide higher flow rates. It is also used to achieve a given outlet pressure with less air drive pressure Add - 2 to the catalog number.
