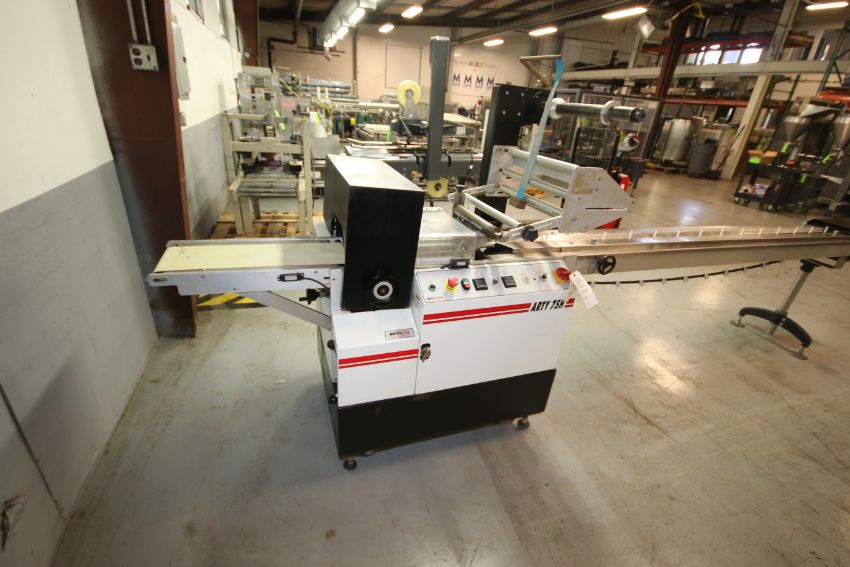

Fully Automated High Speed Horizontal Flow Wrapper Arty 75H

The ARTY75H is a versatile, low maintenance, horizontal flow wrapper for pillow type applications and offers hi value for the dollar.

The end users are small and medium corporations in the following industries:

• Bakeries, bread and pastries
• Cookie manufactures
• Confectionery manufacturers
• Contract packagers
• Snack food manufacturers

Higher speeds than the industry standards. Single jaw: 125, double jaw: 180, quadruple jaws: 360.
Low energy consumption: A single jaw machine uses only 1.3 KW per hour.
No tools and no special skills are needed for set up. Turn one hand-wheel to adjust the bag length, turn one knob to adjust the bag width, switch off the infeed conveyor and place it in position with the jaws, guide the product with the telescopic side rails.
No change parts needed from one application to another by using an adjustable forming box and telescopic side rails.
Quick change over made possible by using a self-centering reel holder.
Maintenance free drive system using a 3 phases AC motor and variable speed AC drive.
Easy cleaning, all parts in contact with the product are removable without tools and are made from stainless steel #304.
Low maintenance, permanent lubricated gearbox with synthetic oil, mercury rotary switches instead of slip rings and brushes, self-lubricating bearings every where this is possible.
Mobility, the machine can be equipped with four castors and four legs.
All parts and components are sourced in north America.
