Stellar Equipment
Tube in Tube Heat Exchanger
Tube in Tube Heat Exchanger
Regular price
$250.00 USD
Regular price
$289.00 USD
Sale price
$250.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

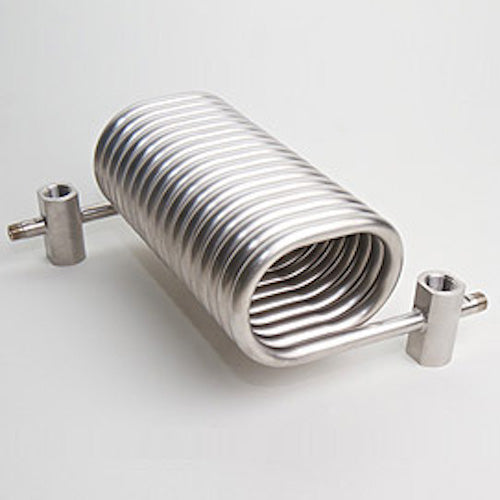

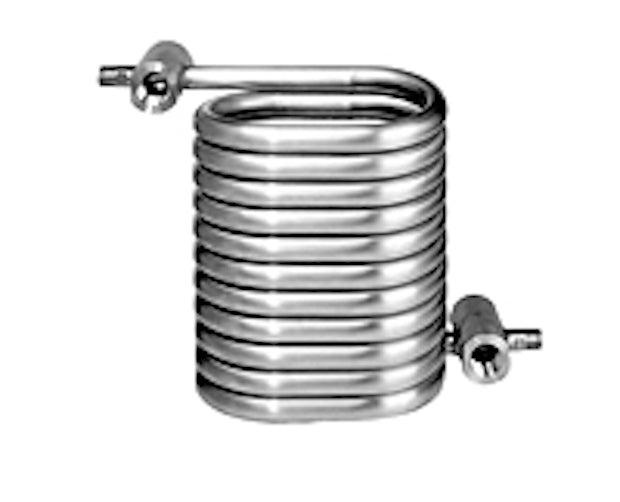

Tube-in-tube heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications.
Performance Features:
- Heat transfer rates to 100,000 BTU/hr (29 kW)
- Liquid flows to 10 GPM (38 LPM)
- Pressures up to 4,500 psi (310 bar)
Design Features:
- 316L SS
- NPT, tube stubs
- Thick walled seamless tube
- Highly resistant to thermal stress
- All welded construction
- Maintenance free
Typical Applications:
- High temperature, high pressure, low flow
- Multi-phase fluids & slurries
- High thermal stress
- Steam condensing
- Seal cooling
- Liquid/Gas
- Sampling
- WFI
